 IPC Series  1U Family |
1U - Rack-1600

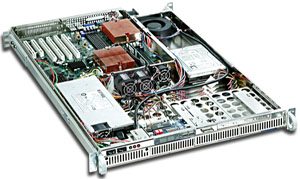

RACK-1600K8
|
1U AMD DUAL OPTERON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
4 x internal HDD bay,1 x slim CD-ROM bay
* 1U 400W AMD power supply as option
* 97mm blower x 1, 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" motherboard installable, AMD Opteron M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|
RACK-1600K8IDE
|
1U AMD DUAL OPTERON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
1 x internal HDD bay,1 x slim CD-ROM bay
IDE: 3 x IDE ATA133 Hot-Swap Mobile Racks
* 1U 400W AMD power supply as option
* 97mm blower x 1, 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" motherboard installable, AMD Opteron M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|

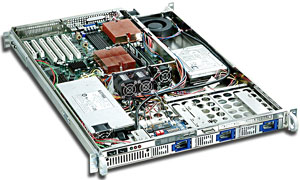

RACK-1600K8SATA
|
1U AMD DUAL OPTERON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
1 x internal HDD bay,1 x slim CD-ROM bay
SATA: 3 x
SATA150 Hot-Swap Mobile Racks
* 1U 400W AMD power supply as option
* 97mm blower x 1, 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" motherboard installable, AMD Opteron M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|
RACK-1600K8SCSI
|
1U AMD DUAL OPTERON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
1 x internal HDD bay,1 x slim CD-ROM bay
SCSI: 3 x
SCSI ULTRA320 Hot-Swap Mobile Racks
* 1U 400W AMD power supply as option
* 97mm blower x 1, 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" motherboard installable, AMD Opteron M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|

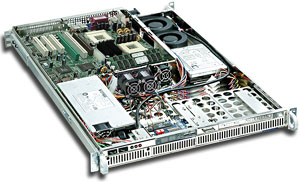

RACK-1600K7
|
1U AMD DUAL ATHLON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
4 x internal HDD bay,1 x slim CD-ROM bay
* 1U 400W AMD power supply as option
* 97mm blower x 2, and 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" MB installable, AMD DualAthlon M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|
RACK-1600K7IDE
|
1U AMD DUAL ATHLON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
1 x internal HDD bay,1 x slim CD-ROM bay
IDE: 3 x IDE ATA133 Hot-Swap Mobile Racks
* 1U 400W AMD power supply as option
* 97mm blower x 2, and 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" MB installable, AMD DualAthlon M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|

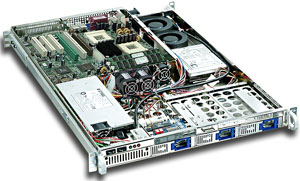

RACK-1600K7SATA
|
1U AMD DUAL ATHLON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
1 x internal HDD bay,1 x slim CD-ROM bay
SATA: 3 x
SATA150 Hot-Swap Mobile Racks
* 1U 400W AMD power supply as option
* 97mm blower x 2, and 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" MB installable, AMD DualAthlon M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|
RACK-1600K7SCSI
|
1U AMD DUAL ATHLON SERVER
* Bulid-in Multiple Intelligent Control Device on the front
* 5 drive bay (4 HDD & 1 slim CD-ROM)
1 x internal HDD bay,1 x slim CD-ROM bay
SCSI: 3 x
SCSI ULTRA320 Hot-Swap Mobile Racks
* 1U 400W AMD power supply as option
* 97mm blower x 2, and 40x28mm fan x 2, 40x56mm fan x 2
* 12x13" MB installable, AMD DualAthlon M/B recommend
* with front door with lockable keylock as security
* with 1 slot full-size expansion card (1U1PCI64L included)
* with 26" full extension dry slide rail as option
* with patented 180° Left and Right rotatable riser card bracket
* with various I/O shield replaceable
* with black and beige color selectable
* External dimension: 19" x 1U x 686mm
|
|
