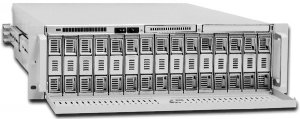

3U - Rack-3100
RACK-3100
* 3U form factor with Intelligent Ultra Cool design
* Bulid-in Multiple Intelligent Control Device on the front
* 17 Drive Capacity
 15 x 3.5" internal HDD bay (standard FDD installable)
 1 x intelligent control sensor (or micro FDD bay)
 1 x slim CD-ROM bay
* option: any ATX motherboard up to 12x13”
* option: 2U single 460W~650W power supply
* option: 2U/3U redundant 500W~650W power supply
* option: 2x6cm rear exhaust fans (recommend if the system is
  Opteron or DualAthlon or DualXeon environment)
* equipped 3x12cm ball bearing fans as standard.
* secured with a front door with butterfly keylock
* equipped 180° rotatable rear-central mounting kit
* compatible with 7 slot full-size expansion cards
* dimension: 19" x 3U x 660mm
RACK-3000RPS2
* 3U form factor with Intelligent Ultra Cool design
* Bulid-in Multiple Intelligent Control Device on the front
* 17 Drive Capacity
 15 x IDE ATA133 Hot-Swap Mobile Rack
 1 x intelligent control sensor (or micro FDD bay)
 1 x slim CD-ROM bay
* option: any ATX motherboard up to 12x13”
* option: 2U single 460W~650W power supply
* option: 2U/3U redundant 500W~650W power supply
* option: 2x6cm rear exhaust fans (recommend if the system is
  Opteron or DualAthlon or DualXeon environment)
* equipped 3x12cm ball bearing fans as standard.
* secured with a front door with butterfly keylock
* equipped 180° rotatable rear-central mounting kit
* compatible with 7 slot full-size expansion cards
* dimension: 19" x 3U x 660mm
RACK-3000RPS2
* 3U form factor with Intelligent Ultra Cool design
* Bulid-in Multiple Intelligent Control Device on the front
* 17 Drive Capacity
 15 x Serial ATA 150 hot-swap mobile racks

 1 x intelligent control sensor (or micro FDD bay)
 1 x slim CD-ROM bay
* option: any ATX motherboard up to 12x13”
* option: 2U single 460W~650W power supply
* option: 2U/3U redundant 500W~650W power supply
* option: 2x6cm rear exhaust fans (recommend if the system is
  Opteron or DualAthlon or DualXeon environment)
* equipped 3x12cm ball bearing fans as standard.
* secured with a front door with butterfly keylock
* equipped 180° rotatable rear-central mounting kit
* compatible with 7 slot full-size expansion cards
* dimension: 19" x 3U x 660mm
RACK-3000RPS2
* 3U form factor with Intelligent Ultra Cool design
* Bulid-in Multiple Intelligent Control Device on the front
* 17 Drive Capacity
 15 x SCA SCSI Ultra320MB Hot-Swap mobile racks
 1 x intelligent control sensor (or micro FDD bay)
 1 x slim CD-ROM bay
* option: any ATX motherboard up to 12x13”
* option: 2U single 460W~650W power supply
* option: 2U/3U redundant 500W~650W power supply
* option: 2x6cm rear exhaust fans (recommend if the system is
  Opteron or DualAthlon or DualXeon environment)
* equipped 3x12cm ball bearing fans as standard.
* secured with a front door with butterfly keylock
* equipped 180° rotatable rear-central mounting kit
* compatible with 7 slot full-size expansion cards
* dimension: 19" x 3U x 660mm
