Cabinet Rack Series

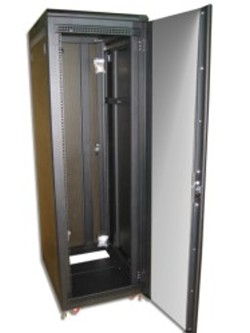

19" Eric Server Rack

Cabinet Rack Series

● To manufacture must follow the ANSI/ EIARS-310-C,D,E,F criterions. UL & CE approved, and MIL-STD-167 test.
● Main Aluminum vertical rails were using the squeeze aluminum pillars; an arc type is its appearance; material :AL6063T5
● Flexible Aluminum vertical rails can set at the rack's front & back to meet the actual terminal wire' needs. And it at least should have 3 faces of grooves. User can see their actual situation to added the cable fixture. Rack's external depth is 900mm, and it's internal depth must reach 750mm.
● We have honeycomb or tempered glass door for you to choose. The same to the Front doors . And with the hidden lock or coded lock is optional and up to your actual need.
● 6-way Universal socket strips(1set) with switch, 50 Sets of Catch Nut and Panel Screw are the standard outfit, also you may added the earthling copper rails for your rack.
● Flexible aluminum vertical rail's apertures must can install the M5 or M6 catch nuts, and aperture to aperture's distance must follow the EIA-Rs-310C' criterions (every aperture's size cannot smaller than 9.2mm*9.2mm). And the flexible aluminum vertical rail's thickness must higher than 2mm.

Standard Size

H 0

H 1

D 0

D 1

41U	Eric-41-60	1822	2032	630	600
41U	Eric-41-90	1822	2032	630	900
37U	Eric-37-60	1645	1854	630	900
37U	Eric-37-90	1645	1854	630	900
